ANSI B16.5 Socket Weld Flange

  • Standard:ANSI B16.5,ASME B16.5
  • Size:1/2"~24"
  • Pressure:CL150,CL300,CL600,CL900,CL1500
  • Specification:SWRF,SWLM,SWLFM
  • Material:S.S,CS,Duplex
CONSULTATION SEND E-MAIL

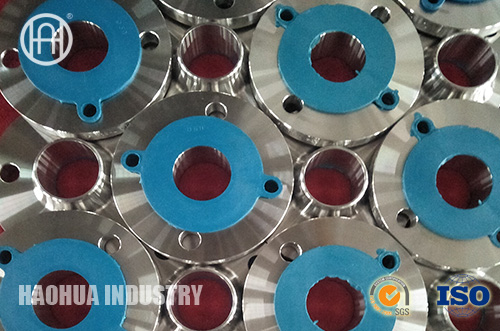

  • ANSI B16.5 Socket Weld Flange
  • ANSI B16.5 Socket Weld Flange

Product Information



Socket Weld Flanges are similar to slip-on flanges, however, socket welds have an internal recess on the inside diameter to allow for a smoother flow of the process fluid.  The positive of this is that is creates a smooth bore with the proper welding and grinding.  The negative of this type of flange is that it can be more expensive than a slip-on due to more intricate machining, and they can be less readily available than slip-ons due to the fact that the bottom half of the inside diameter must be made to the same schedule as the pipe that is being used. (you must specify the schedule needed)  These socket weld flanges were initially developed for use on smaller sizes of pipe at higher pressure ratings.  They are more used on lower pressure temperature as well today.  Specialty Flange and Fitting, Inc. offers these flanges in stainless and alloy material.  See the diagram below for the general place the pipe fits in the flange.

Key Features:

The recess on the inside diameter allows for a good fit of the pipe allowing for a smooth flow of liquid

Work well for smaller sizes and higher pressure temperature conditions.

Similar to slip-on flanges, but must specify the pipe schedule they will be used for with socket welds

Standard

1.ASME

ANSI B16.5,ASME B16.5,ASME B16.47,ASME B16.36,ASME B16.48,AWWA C-207,API 605,API590,MSS SP44,API6A

2.DIN

DIN2527,DIN2566,DIN2573,DIN2576,DIN2627,DIN2628,DIN2629,DIN2630,DIN2631,DIN2632,

DIN2633,DIN2634,DIN2635,DIN2636,DIN2637,DIN2638,DIN2641,DIN642,DIN2655,DIN2656,

DIN2673,DIN28030,DIN28031,DIN28032,DIN28036,DIN28038,DIN86029,DIN86030,DIN11864-2

3.EN

EN1092-1,EN1759-1

4.BS

B.S 3293,B.S 4504,B.S 10

5.ISO

ISO 7005-1

6.AS

AS2129,AS4087, AS, NZS 4331.1

7.JIS

JIS B2220,JIS B2238,JIS B2290,JIS G3443-2,JPI-7S-15,JPI-7S-43

8.UNI

UNI2253,UNI2254,UNI2276,UNI2277,UNI2278,UNI2280,UNI,2281~2286,UNI6091~6094

Size

1/8”~160”,DN10~DN4000

Pressure

PN1,PN2.5,PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160,PN250,PN320,PN400

CLASS75,CLASS150,CLASS300,CLASS400,CLASS600,CLASS900,CLASS1500,CLASS2500

2K,5K,10K,16K,20K,30K,40K

Specification

Plate Flange,Slip-On Welding Flange,Welding Neck Flange,Threaded Flange,Socket Welding Flange,Blind Flange,Long Welding Neck Flange,Lap Joint,Loose Plate Flange,Orifice Flange,Reducing Flange,Integral flange,Figure-8,Paddle Blank,Paddle Spacer,Specatcle Blind,Squre Flange,Reducing Flange, Orifice Flange

Material

1.Carbon Steel

A105,A350 LF1,A350 LF2,A350 LF3

2.Stainless Steel

ASTM SA-182/SA-182M F304,F304H,F304L,F316,F316H,F316L,F321,321H,F316Ti,317,F317H,F347,F904L,F310

3.Duplex Stainless Steel

F51,F53,F60

4. Hastelloy

Hastelloy  B,Hastelloy  B-2,Hastelloy  B-3,Hastelloy  C-4,Hastelloy  C-22,,Hastelloy  C-276,Hastelloy  C-2000,Hastelloy  G-35,Hastelloy  G-30,Hastelloy N,Hastelloy S,Hastelloy X

5. Haynes

Haynes 188,Haynes 230,Haynes 556

6. Incoloy

Incoloy 020,Incoloy 800,Incoloy 800H,Incoloy 800HT,Incoloy 825,Incoloy 925,Incoloy A-286,

7. Inconel

Inconel 600,Inconel 601,Inconel 617,Inconel 625,Inconel 718,Inconel X750

8. Monel

Monel 400,Monel 401,Monel 404,Monel K-500

9. Nickel

Nickel 200,Nickel 201
