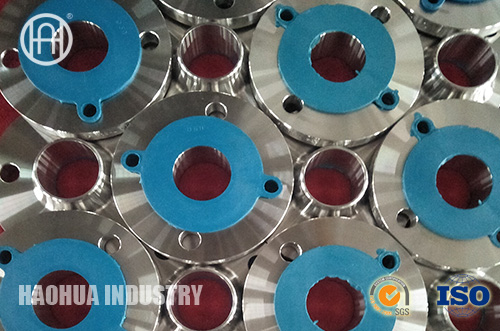

The calculated strength from a Slip On flange under internal pressure is of the order of two-thirds that of Welding Neck flanges, and their life under fatigue is about one-third that of the latter.
The connection with the pipe is done with 2 fillet welds, as well at the outside as also at the inside of the flange.
The X measure on the image, are approximately:
Wall thickness of pipe + 3 mm.
This space is necessary, to do not damage the flange face, during the welding process.
A disadvantage of the flange is, that principle always firstly a pipe must be welded and then just a fitting. A combination of flange and elbow or flange and tee is not possible, because named fittings have not a straight end, that complete slid in the Slip On flange.
Standard
1.ASME
ANSI B16.5,ASME B16.5,ASME B16.47,ASME B16.36,ASME B16.48,AWWA C-207,API 605,API590,MSS SP44,API6A
2.DIN
DIN2527,DIN2566,DIN2573,DIN2576,DIN2627,DIN2628,DIN2629,DIN2630,DIN2631,DIN2632,
DIN2633,DIN2634,DIN2635,DIN2636,DIN2637,DIN2638,DIN2641,DIN642,DIN2655,DIN2656,
DIN2673,DIN28030,DIN28031,DIN28032,DIN28036,DIN28038,DIN86029,DIN86030,DIN11864-2
3.EN
EN1092-1,EN1759-1
4.BS
B.S 3293,B.S 4504,B.S 10
5.ISO
ISO 7005-1
6.AS
AS2129,AS4087, AS, NZS 4331.1
7.JIS
JIS B2220,JIS B2238,JIS B2290,JIS G3443-2,JPI-7S-15,JPI-7S-43
8.UNI
UNI2253,UNI2254,UNI2276,UNI2277,UNI2278,UNI2280,UNI,2281~2286,UNI6091~6094
Size
1/8”~160”,DN10~DN4000
Pressure
PN1,PN2.5,PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160,PN250,PN320,PN400
CLASS75,CLASS150,CLASS300,CLASS400,CLASS600,CLASS900,CLASS1500,CLASS2500
2K,5K,10K,16K,20K,30K,40K
Specification

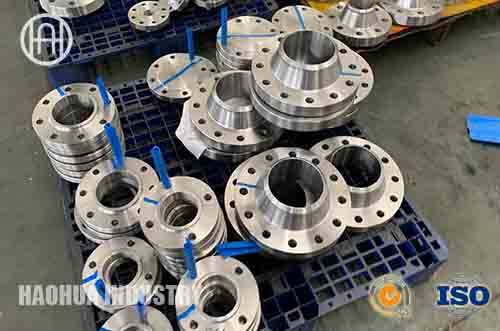

Plate Flange,Slip-On Welding Flange,Welding Neck Flange,Threaded Flange,Socket Welding Flange,Blind Flange,Long Welding Neck Flange,Lap Joint,Loose Plate Flange,Orifice Flange,Reducing Flange,Integral flange,Figure-8,Paddle Blank,Paddle Spacer,Specatcle Blind,Squre Flange,Reducing Flange, Orifice Flange
Material
1.Carbon Steel
A105,A350 LF1,A350 LF2,A350 LF3
2.Stainless Steel
ASTM SA-182/SA-182M F304,F304H,F304L,F316,F316H,F316L,F321,321H,F316Ti,317,F317H,F347,F904L,F310
3.Duplex Stainless Steel
F51,F53,F60
4. Hastelloy
Hastelloy B,Hastelloy B-2,Hastelloy B-3,Hastelloy C-4,Hastelloy C-22,,Hastelloy C-276,Hastelloy C-2000,Hastelloy G-35,Hastelloy G-30,Hastelloy N,Hastelloy S,Hastelloy X
5. Haynes
Haynes 188,Haynes 230,Haynes 556
6. Incoloy
Incoloy 020,Incoloy 800,Incoloy 800H,Incoloy 800HT,Incoloy 825,Incoloy 925,Incoloy A-286,
7. Inconel
Inconel 600,Inconel 601,Inconel 617,Inconel 625,Inconel 718,Inconel X750
8. Monel
Monel 400,Monel 401,Monel 404,Monel K-500
9. Nickel
Nickel 200,Nickel 201
