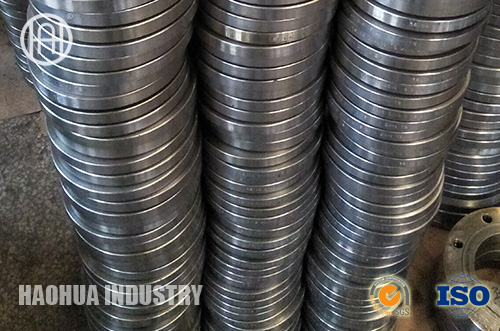

Plate flange is also named plain flange, flat flange and slip on flange etc. A plate flange is a flat, circular disk that is welded onto the end of a pipe and allows it to be bolted to another pipe. Typically used in fuel and water pipelines, the two plate flanges will be bolted together with a gasket in between them. The plate flange will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
When building a pipeline, the length of the pipes used are not always known. By manufacturing the pipe separate from the plate flange, the welders can cut the pipe to length and weld a plate flange in place to join the pipes at any needed length. The plates can also be welded to the pipe on a slight bias, allowing two pipes to be joined that may not be precisely lined up.
plate flange designs are uniform in any given size regardless of materials used to create them. This allows a 6-inch (15 cm) black pipe flange to mate perfectly with a 6-inch stainless steel flange. The plate flanges will have a serrated finish on the inside mating surface, which allows the plate to seat into the gasket material. This ensures a perfect seal between two joining pipes.
Standard
1.ASME
ANSI B16.5,ASME B16.5,ASME B16.47,ASME B16.36,ASME B16.48,AWWA C-207,API 605,API590,MSS SP44,API6A
2.DIN
DIN2527, DIN2566, DIN2573, DIN2576, DIN2627, DIN2628, DIN2629, DIN2630, DIN2631, DIN2632,
DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2641, DIN642, DIN2655, DIN2656,
DIN2673, DIN28030, DIN28031, DIN28032, DIN28036, DIN28038, DIN86029, DIN86030, DIN11864-2
3.EN
EN1092-1,EN1759-1
4.BS
B.S 3293,B.S 4504,B.S 10
5.ISO
ISO 7005-1
6.AS
AS2129,AS4087, AS, NZS 4331.1
7.JIS
JIS B2220,JIS B2238,JIS B2290,JIS G3443-2,JPI-7S-15,JPI-7S-43
8.UNI
UNI2253, UNI2254, UNI2276, UNI2277, UNI2278, UNI2280, UNI,2281~2286, UNI6091~6094
Size
1/8”~160”,DN10~DN4000
Pressure
PN1, PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250, PN320, PN400
CLASS75, CLASS150, CLASS300, CLASS400, CLASS600, CLASS900, CLASS1500, CLASS2500
2K, 5K, 10K, 16K, 20K, 30K, 40K
Specification
Plate Flange,Slip-On Welding Flange,Welding Neck Flange,Threaded Flange,Socket Welding Flange,Blind Flange,Long Welding Neck Flange,Lap Joint,Loose Plate Flange,Orifice Flange,Reducing Flange,Integral flange,Figure-8,Paddle Blank,Paddle Spacer,Specatcle Blind,Squre Flange,Reducing Flange, Orifice Flange
Material
1.Carbon Steel
A105,A350 LF1,A350 LF2,A350 LF3
2.Stainless Steel
ASTM SA-182/SA-182M F304, F304H, F304L, F316 ,F316H, F316L, F321, 321H, F316Ti, 317, F317H, F347, F904L, F310
3.Duplex Stainless Steel
F51,F53,F60
4. Hastelloy
Hastelloy B,Hastelloy B-2,Hastelloy B-3,Hastelloy C-4,Hastelloy C-22,,Hastelloy C-276,Hastelloy C-2000,Hastelloy G-35,Hastelloy G-30,Hastelloy N,Hastelloy S,Hastelloy X
5. Haynes
Haynes 188,Haynes 230,Haynes 556
6. Incoloy
Incoloy 020,Incoloy 800,Incoloy 800H,Incoloy 800HT,Incoloy 825,Incoloy 925,Incoloy A-286,
7. Inconel
Inconel 600,Inconel 601,Inconel 617,Inconel 625,Inconel 718,Inconel X750
8. Monel
Monel 400,Monel 401,Monel 404,Monel K-500
9. Nickel
Nickel 200,Nickel 201
